Description
Key Features:
- Reference 15.4 Channel Balanced Processor with Dolby Atmos
- DTS:X Pro, Auro-3D, IMAX Enhanced and 8K Ultra HD
- HEOS® Built-In streaming
- Peerless Performance
- Exquisite Design
Benefits of Marantz AV 10 15.4 Channel 8K AV Preamplifier / Processor:
Performance

Our Marantz Sound Master meticulously tuned AV 10 for amazing performance with careful parts selection to create the Most Musical Sound in your home.
Modern Style

Excellence is heard and seen. AV 10 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance.
Customizability

Thoughtfully curated connectivity options and finetuning ability allow you to make AV 10 your own.
Effortless
Included aluminum remote, accessible front-panel controls, and an intuitive onscreen setup process make you feel like an expert user right away.
specification
Multichannel Surround |
- DTS HD Master / DTS:X / DTS:X Pro: Yes / Yes / Yes
- DTS Neo:X / DTS Neural:X: No / Yes (15ch)
- DTS Virtual:X: Yes
- IMAX Enhanced: Yes
- Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music: Yes / Yes / Yes / Yes
- Dolby ProLogic Ilz / Dolby Surround: No / Yes
- Auro 3D: Yes
- 360 Reality Audio / MPEG H: Yes / Yes
- Multichannel Stereo: Yes
- Max Number of Processing (Preamp) Channels: 15.4
|
Sound Enhancements |
- Copper Plated Chassis: Yes
- Power Transformer: Toroidal / EI: Yes / No
- Current Feedback Topology: Yes
- Hyper Dynamic Amplifier Modules (HDAM): Yes
- Pure Direct: Yes
- Gold plated RCA terminals: Yes
- Clock Jitter Reducer: Yes
- Audyssey MultEQ: XT32
- Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes
- Audyssey LFC: Yes
- Dirac Live upgradability: Yes
- Compressed Audio Enhancer: MDAX2
|
HDMI |
- HDMI Inputs: Back / Front 7 / No
- HDCP2.3 support: Yes
- HDMI Outputs: Main / Zone: 2 / 1
- HDMI to HDMI Scaling: 1080P/4K to 8K
- GUI Overlay on HDMI: Yes
- HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB: Yes / Yes
- 8K/60Hz AB / 4K/120Hz AB Pass-through In/Out: 7 / 2 (up to 40Gbps)
- HDMI 2.0: 3D / 4K / CEC / ARC: Yes / Yes / Yes / Yes
- Enhanced ARC: Yes
- HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR: Yes / Yes / Yes / Yes / Yes
- ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
- Variable Refresh Rate / Quick Frame Transport Yes / Yes
- 3D Signal Pass-Through Yes
- 8K signal pass-through / scaling / GUI overlay Yes / Yes / Yes
- 4K Signal Pass-Through / Scaling / GUI Overlay Yes / Yes / Yes
- HDMI pass-though in standby mode Yes
- Picture Adjust / Noise Reduction No / No
- CEC Yes
- DSD Audio Capability Yes
- Audio Return Channel Yes
- Auto LipSync Yes
|
Multiroom / CI |
- HEOS Multi-Room Integrated: Yes
- HEOS Link Compatibility: IR/ IP Yes / Yes
- Multi-Room Zones: 3
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog: Yes (2ch) / Yes (2ch) / Yes / Yes
- Zone Audio Output: Speaker / Preout: No / Yes
- Zone HDMI Output from HDMI Source: Yes
- IP Control / RS232 Control / Web Control / App Control: Yes / Yes / Yes / Yes
- IR Flasher In: Yes
- Marantz Remote Bus: Yes
- DC Trigger Output: 2
- HDMI Diagnostics: Yes
|

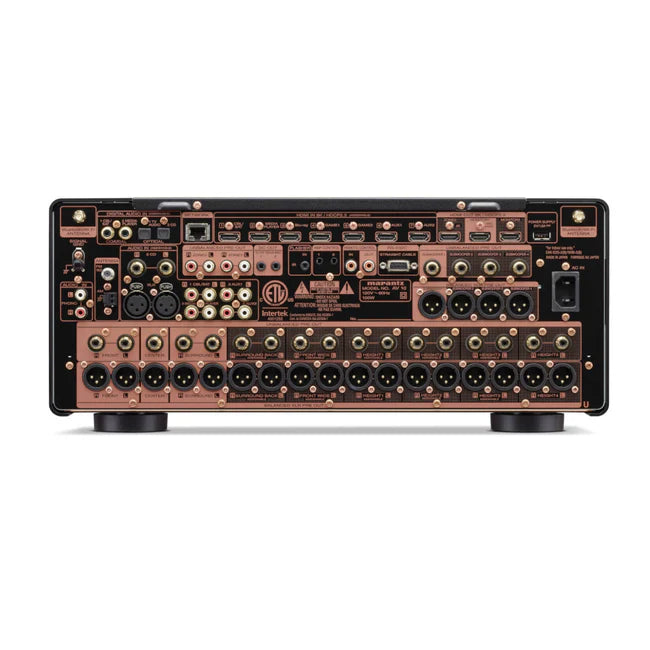

Input/Outputs |
- Composite In / Out: No / No
- Component In / Out: No / No
- HDMI In / Out: 7 / 3
- Multi-Room Video Out: Video / HDMI: No / Yes
- Analogue In / Out: 5 (1x XLR) / No
- Phono (MM) In: Yes
- Digital In: Optical / Coaxial: 2 / 2
- Multi-Room Out: analog / digital: 2 / No
- Multichannel Pre Out: Yes (17.4 RCA & 17.4 XLR)
- Subwoofer Out: 4 (independent)
- Speaker A / B: assignable pre out
- Bi-amp drive: assignable pre out
- Multi-Room Speaker Terminal: pre out
- Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB: No / No / No / No / Yes
- USB Audio / Made for iPod / Made for iPhone: Yes / No / No
- AM/FM Tuner: Yes
|
General |
- Metal Front Panel: Yes
- System Remote Control: RC047SR
- Pre-Programmed / Learnable / LCD Display: Yes / Yes / Yes
- Power Consumption in W: 100
- Standby Consumption in W: 0.2
- CEC Standby Consumption in W: 0.5
- Network Standby Consumption in W: Less than 2.0
|
Dimensions |
Antenna:Horizontal:(W x D x H) – 442 x 503 x 189 mm Antenna:Vertical :(W x D x H) – 442x 503 x 252 mm W/O Antenna :(W x D x H) – 442 x 480 x 189 mm
|
Weight |
37.0 kg |
What’s in the box |
Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord |
