Expansive sound from a stealthy in-wall speaker

If you’re planning a custom-installed home theater system, check out JBL’s Studio 6 Architectural Theater in-wall. This high-quality in-wall speaker produces engaging sound without taking up any floor space.

Use a pair of the Studio 6 Theaters flanking your wall-mounted TV in a cinema-grade JBL surround sound system.

Adjust the sound to your space

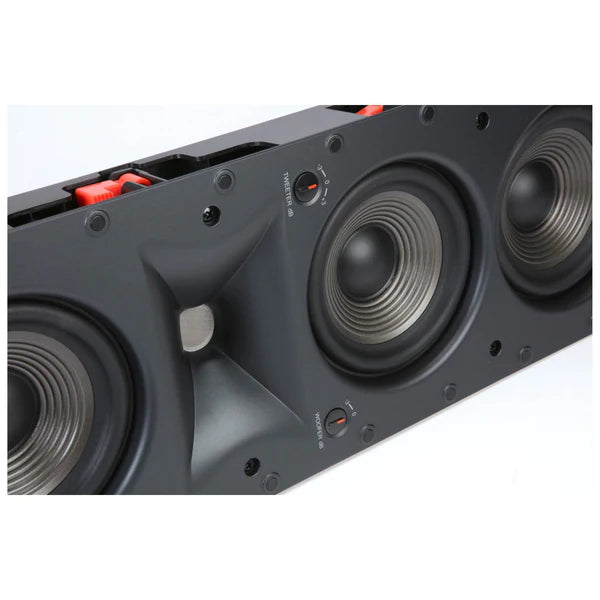

This speaker uses four 5-1/4″ woofers with a centrally placed High Definition Imaging (HDI) waveguide mated to a 1″ high-frequency compression driver for full-sound with tight, clean bass and smooth, dynamic highs.

Independent level-control knobs for the tweeter and woofer on the front baffle let you adjust output to suit your room’s acoustics.

Born from JBL’s storied audio heritage

JBL famously pioneered horn-loaded compression drivers in speaker arrays at large concert venues — they’re able to fill space with clear sound in a way a standard dome tweeter can’t.

The cornerstone of JBL’s Studio 6 Series’ distinctive sound is JBL’s 1″ compression driver mated to a High-Definition Imaging (HDI) horn. This proprietary design helps this speaker deliver optimum sound quality throughout your room.

DIY installation

If this is a do-it-yourself install, check out their guide to installing in-wall speakers, along with their selection of in-wall speaker wire. You can paint the included magnetic grille to have your speaker blend in with your decor.

Product highlights:

• ideal for use in a custom-installed home theater or in-wall stereo music system
• four 5-1/4″ Polyplas® woofers
• High Definition Imaging (HDI) waveguide with 2414H-1 1″ high frequency compression driver
• independent front-baffle tweeter and woofer level controls
• tweeter: ±3dB
• woofer: 0/-3dB
• frequency response: 65-20,000 Hz
• recommended amplifier power: 10-150 watts
• nominal impedance: 6 ohms
• sensitivity: 96 dB
• includes zero-bezel paintable magnetic grille

What’s in the box:

• In-wall loudspeaker
• Grille
• Cut-Out Template
• Quick Start Guide
