Brand & Model

Epson EH-TW9400

Projection system

RGB liquid crystal shutter projection system

LCD Panel

0.74” wide panel with MLA (C2 Fine, 12 bit, OD


• Colour Light Output: 2,600 Lumen
• White Light Output: 2,600 Lumen
• Resolution: 4K PRO-UHD, 16:9
• High Definition: 4K enhancement
• Aspect Ratio: 16:9
• Contrast Ratio: 1,200,000 : 1
• Light source: Lamp
• Lamp: UHE, 250 W, 3,500 h durability, 5,000 h durability (economy mode)
• Keystone Correction: Manual vertical: ± 30 °
• Colour Processing: 10 Bits
• 2D/3D Frequency Image: 240 Hz / 480 Hz
• 2D Vertical Refresh Rate: 192 Hz – 240 Hz
• 3D Vertical Refresh Rate: 400 Hz – 480 Hz
• Colour Reproduction: upto 1.07 billion colours

Optical

• Projection Ratio: 1.35 – 2.84:1
• Zoom: Motorized, Factor: 2.1
• Lens: Optical
• Lens Shift: Motorized – Vertical ± 96.3 %, horizontal ± 47.1 %
• Lens position memory: 10 positions
• Image Size: 50 inches – 300 inches
• Projection Distance Wide/Tele: 3 m – 6.3 m ( 100 inch screen)
• Projection Lens F Number: 2 – 3
• Focal Distance: 22.5 mm – 46.7 mm
• Focus: Motorized

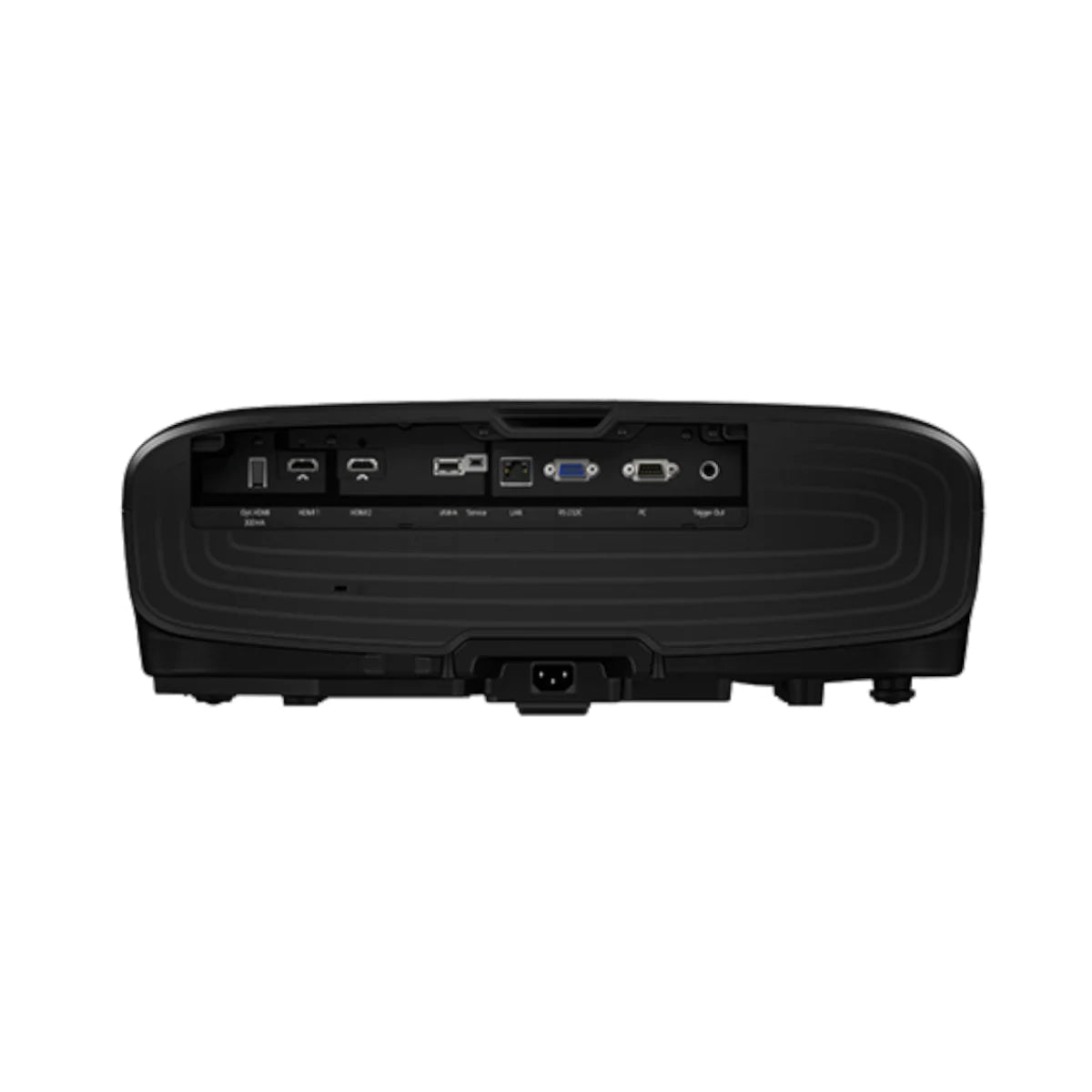

Connectivity

• nterfaces: Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), HDMI (HDCP 2.2), HDMI in (2x), VGA in, Trigger out, Wireless Network (optional), RS-232C, USB 2.0 Type B (Service Only), USB 2.0 Type A
• Epson iProjection App: Ad-Hoc / Infrastructure

Dimensions (W x D x H)

520‎ x 450 x 193 mm (with feet)
520‎ x 450 x 170 mm (excluding feet)
