Yamaha YHT-3072-IN 5.1 Home Theatre System with Active Subwoofer
Description
Description:

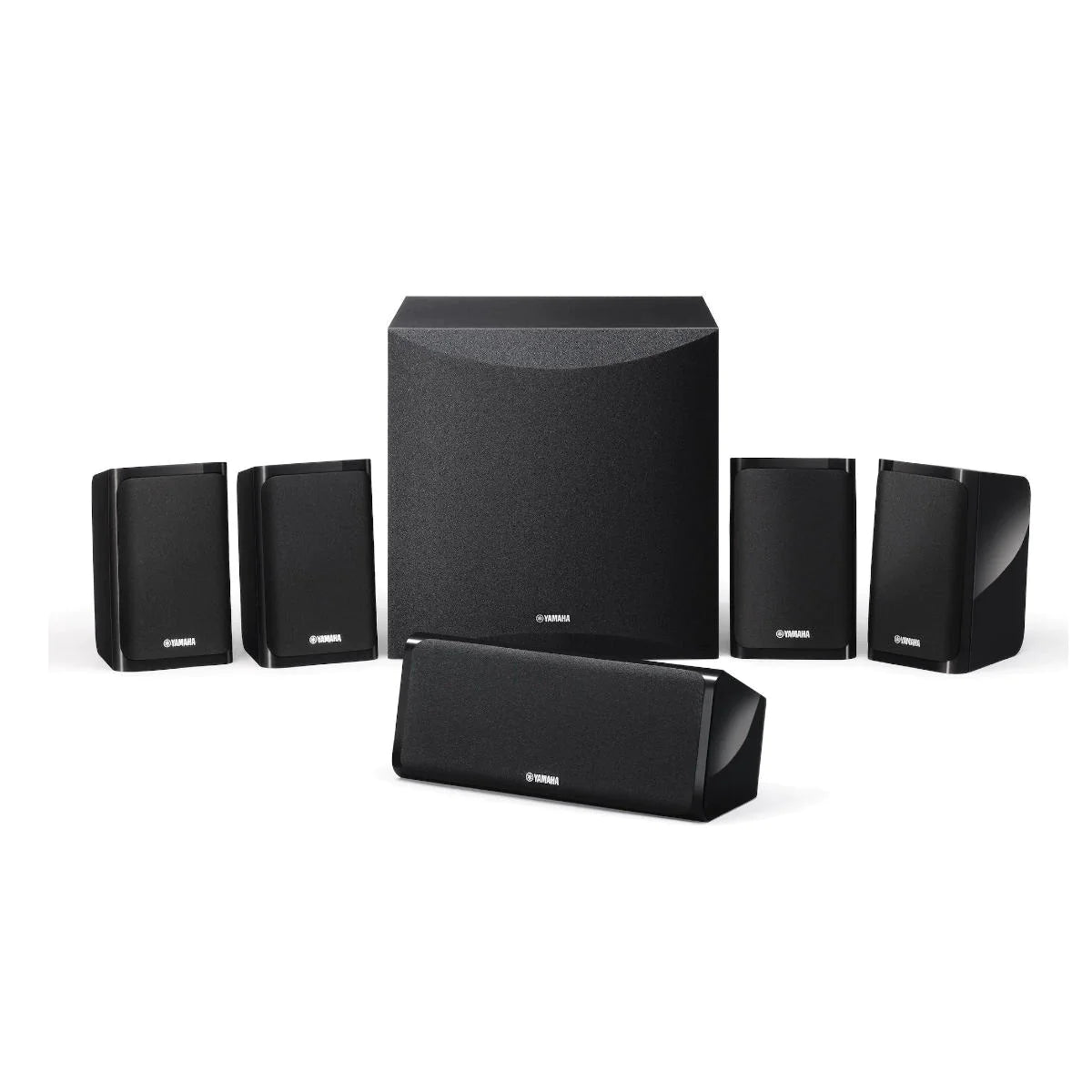

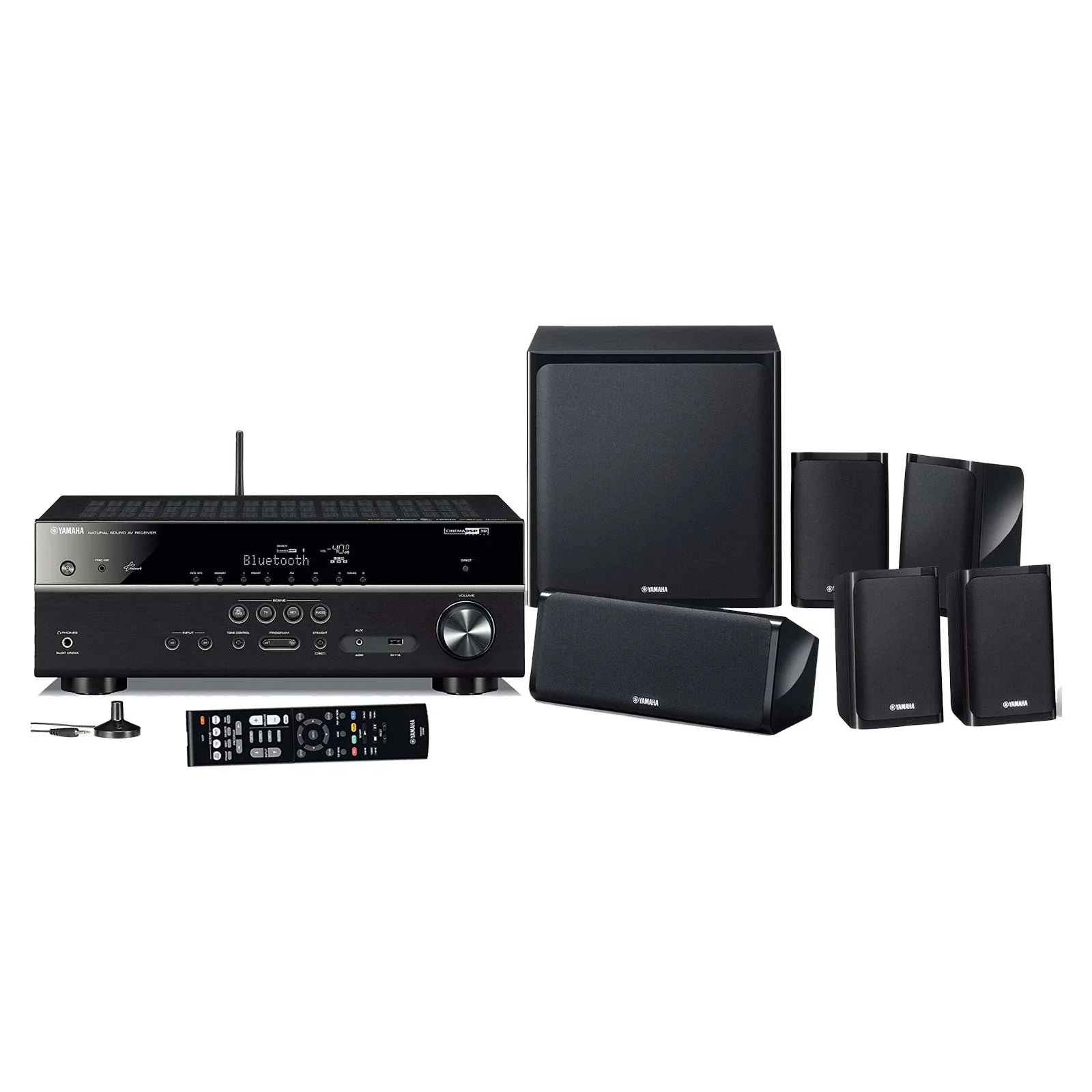

My audio visuals company introduces the Yamaha YHT-3072 home theatre system accompanied by an active subwoofer. One notable feature of this system is its support for wireless music playback through Bluetooth®. It also offers 4K Ultra HD video capability with HDCP 2.2 compatibility and utilizes a discreet 5.1-channel amplifier design. Additionally, the exclusive Yamaha YPAO™ system effortlessly calibrates the listening environment for optimal sound performance. Included in the package is a compact 5.1-channel speaker system accompanied by a robust 8” 100 watt powered subwoofer.
Warranty:
1-year manufacturer’s warranty
Key Features:
-
5-channel powerful surround sound
- 70 W per Channel (6 ohms, 20 Hz-20 kHz, 0.09% THD, 2-ch driven)
- 100 W per Channel (6 ohms, 1 kHz, 0.9% THD, 1-ch driven)
- 135 W per Channel (6 ohms, 1 kHz, 10% THD, 1-ch driven)
- HD Audio with CINEMA DSP
- YPAO™ sound optimisation
- Bluetooth with Compressed Music Enhancer
- HDMI® (4 in / 1 out) with Dolby Vision™ and Hybrid Log-Gamma
Benefits of Yamaha YHT-3072-IN 5.1 Home Theatre System with Active Subwoofer:
Enjoy easy wireless music playback from your smartphones and the HTR-3072
The Yamaha YHT-3072-IN 5.1 Home Theatre System provides compatibility with the latest HDMI standards. The AV receiver delivers transmission of 4K video at 60 frames/second pass-through. Additionally, it also supports HDR (High Dynamic Range) video inclusive of Dolby Vision™ and Hybrid Log-Gamma that provide incredible contrast, very smooth tone and extremely rich colours, giving you an experience of High-definition at its finest.
Experience the Ambience
The exclusive Yamaha CINEMA DSP technology supports playback of HD Audio (Dolby® True HD, DTS-HD Master Audio™, etc.) by providing natural and expansive sound imaging. The CINEMA DSP helps transforms the dynamics of the listening ambience with accurate acoustic reproduction of famous venues like the Bottom Line, Roxy Theatre and European Cathedrals and taking you on a musical journey which you won’t forget.
Every Room Is Different
YPAO (Yamaha Parametric Room Acoustic Optimizer) analyses the room acoustics first and then your system and accordingly adjusts various audio parameters to deliver the best sound for your room. By simply placing the supplied microphone at the listening position you favour, and switching YPAO on, the system gets tuned for optimum performance automatically. How amazing is that!
Built for Performance
The HTR-3072 was built with an aim in mind to achieve exceptional and incredible sound, sound that is out of the world, sound that is extremely clear. It includes a discrete amp configuration and a low-jitter PLL circuit, which adds to its stunning audio performance and delivery.
Designed for Sound
The HTR-3072 comes with bi-amping capability which helps drive the treble and bass ranges of the front speakers, both left and right with independent amplifiers. An interesting thing about this is that it also prevents interference between the high and low sounds and further improves the sound of the front speakers.
Go Green
This Home Theatre system was designed keeping the environment in mind and there is a provision for an ECO mode. When it is turned on, it reduces power consumption by about 20%. This is built on an advanced energy saving design.
Specifications
| System Frequency Response | 28 Hz–25 kHz |
| Impedence | 6 ohms (without subwoofer) |
| Type | Full-range bass-reflex |
| Driver | 7 cm (2-3/4”) full-range cone |
| Nominal Input Power | 30 W |
| Maximum Input Power | 100 W |
| Sensitivity | 83 dB / 2.83 V / 1 m |
| Dimensions (W x H x D) | 112 x 176 x 116 mm; 4-3/8” x 6-7/8” x 4-5/8” |
| Weight | 0.59 kg / unit; 1.3 lbs. / unit |
| Type | Full-range acoustic suspension |
| Driver | 7 cm (2-3/4”) full-range cone |
| Nominal Input Power | 30 W |
| Maximum Input Power | 100 W |
| Sensitivity | 84 dB / 2.83 V / 1 m |
| Dimensions (W x H x D) | 276 x 111 x 118 mm; 10-7/8” x 4-3/8” x 4-5/8” |
| Weight | 0.73 kg; 1.61 lbs. |
| Type | Advanced YST II |
| Driver | 20 cm (8”) cone |
| Output Power | 50 W (5 ohms, 100 Hz, 10% THD) |
| Dynmic Power | 100 W (5 ohms) |
| Frequency Response | 28–200 Hz |
| Power consumption | 40 W |
| Dimensions (W x H x D) | 291 x 292 x 341 mm; 11-1/2” x 11-1/2” x 13-3/8” |
| Weight |
8.5 kg; 18.7 lbs |

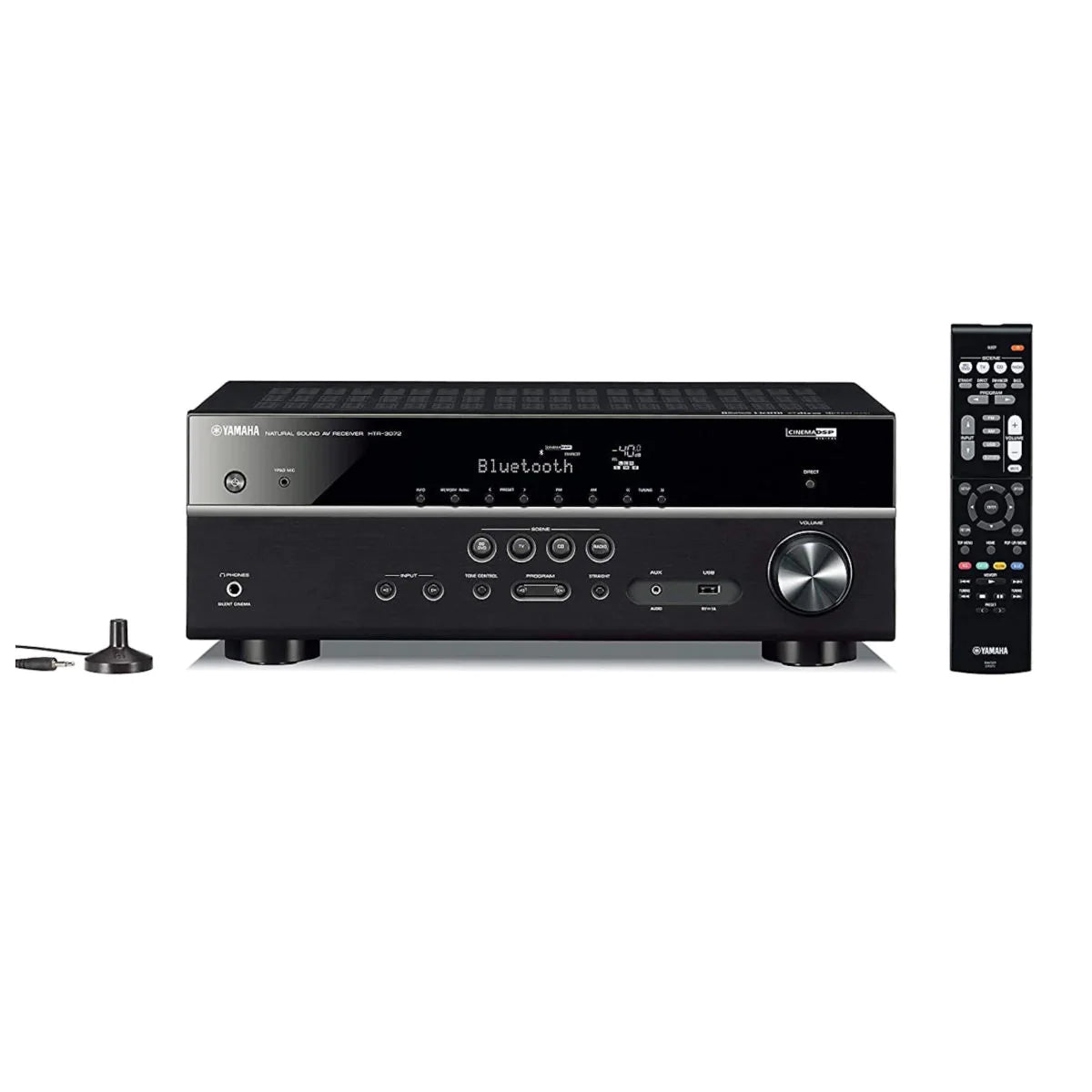

Technical Specifications of AV Receiver
| Channel | 5.1 |
| Rated Output Power (1kHz, 1ch driven) | 100 W (6 ohms, 0.9% THD) |
| Rated Output Power (20Hz-20kHz, 2ch driven) | 70 W (6 ohms, 0.09% THD) |
| Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) | 135 W (6 ohms, 10% THD) |
| Dynamic Power per Channel (8/6/4/2 ohms) | – / 110 / 130 / 150 W |
| CINEMA DSP | Yes |
| DSP Programs | 17 |
| Dialog Level Adjustment | Yes |
| SILENT CINEMA / Virtual CINEMA DSP | Yes (Virtual CINEMA FRONT) |
| Dolby Digital Plus | Yes |
| Dolby Digital | Yes |
| Compressed Music Enhancer | Yes |
| Adaptive DRC (Dynamic Range Control) | Yes |
| Initial Volume & Maximum Volume Setting | Yes |
| Audio Delay | Yes(0-500 ms) |
| 192kHz/24-bit DACs for all channels | Yes (Burr-Brown) |
| 4K Ultra HD Pass-through and upscaling | Yes (4K / 60p, 4:4:4) |
| 4K Ultra HD Pass-through | Yes |
| HDMI 3D passthrough | Yes |
| HDMI Audio Return Channel | Yes |
| HDMI upscaling | Yes (HDMI® to HDMI) |
| Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync | Yes |
| HDMI Input/Output | 4 / 1 (HDCP2.2, HDR and BT.2020 compatible) |
| HDMI CEC | Yes |
| Digital Audio Input/Output: Optical | 1 / 0 |
| Digital Audio Input/Output: Coaxial | 2 / 0 |
| Analog Audio Input/Output | 3 (front 1) / 0 |
| Preout | SW |
| Headphone Output | 1 |
| FM/AM Tuner | Yes |
| On-screen display | Yes (colour OSD) |
| SCENE | SCENE (4 sets) |
| Remote Control Unit | Yes |
| Standby Power Consumption (IR only) | ≤0.2W |
| Auto Power Standby | Yes |
| ECO mode | Yes |
| Dimensions (W x H x D) | 435 x 161 x 315 mm; 17-1/8” x 6-3/8” x 12-3/8” |
| Weight |
7.7 kg; 17.0 lbs. |
Additional information
| Weight | 1000 kg |
|---|---|
| Title | Default Title |
